1991 Concordia Taylor Design #71 42ft

Description

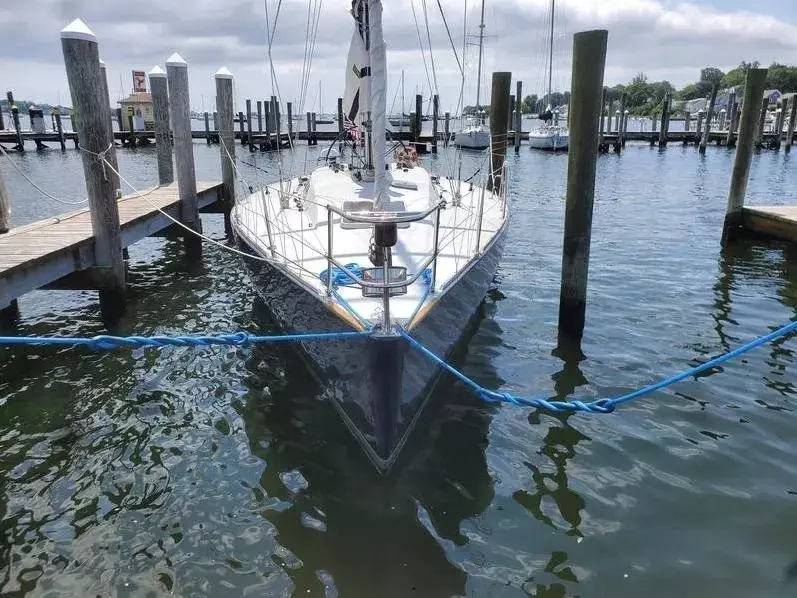

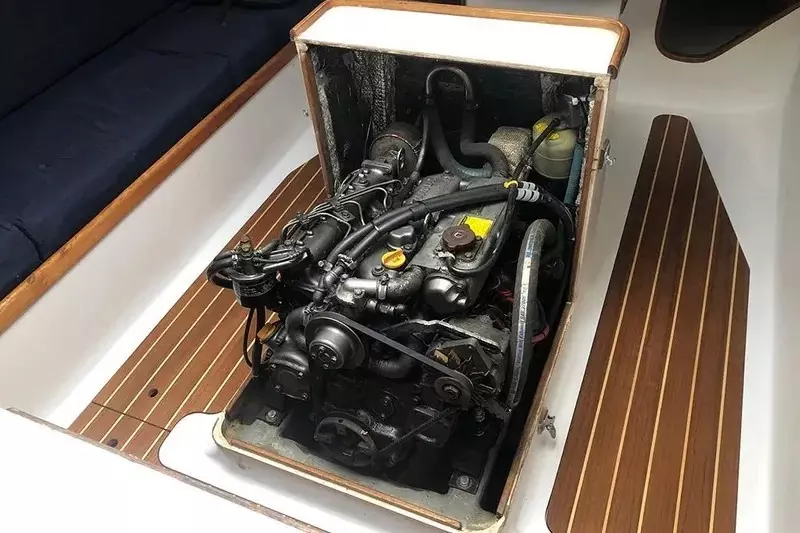

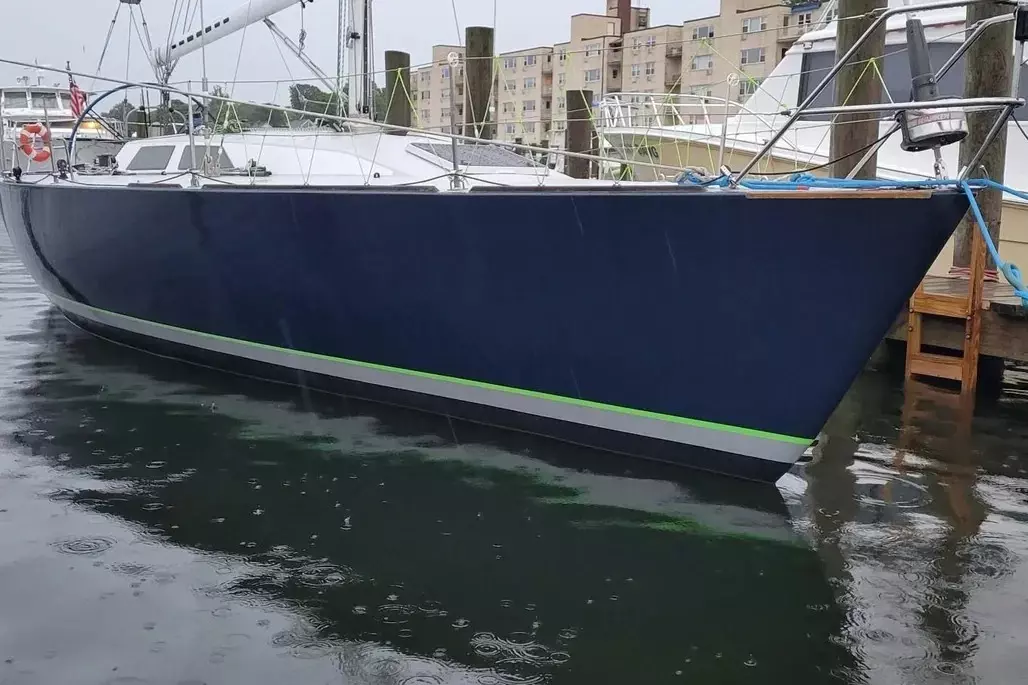

The 1991 Concordia Taylor Design #71 is a 42ft sailboat with a fixed keel and a fiberglass hull. It is equipped with a Yanmar diesel engine and can run on diesel fuel with a capacity of 31-40 gallons. This sloop and cutter rig sailboat was designed by Jim Taylor and is suitable for saltwater use. Made in the United States, it is being sold by a dealer and does not come with a trailer. With a length of 41.75 feet and a beam of 13.25 feet, this classic sailboat offers a reliable and stylish option for sailing enthusiasts.
Contruction Details

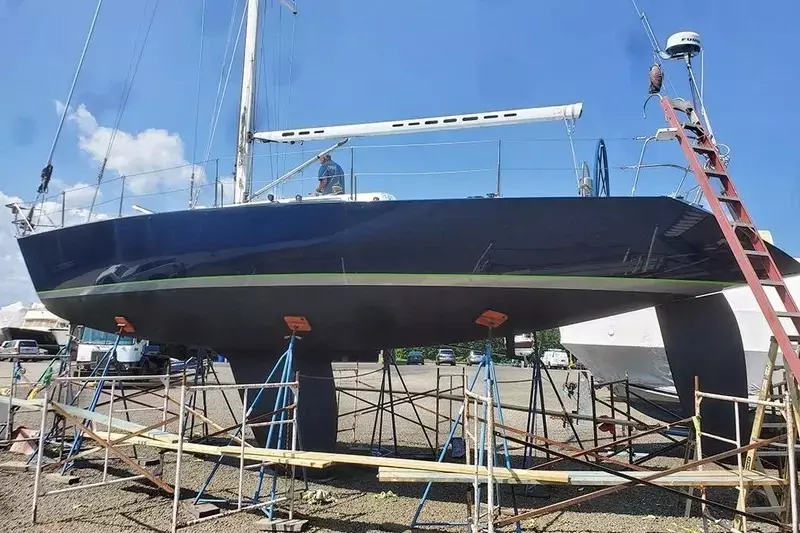

The hull is laminated from unidirectional and biaxial 'S-Glass' skins,vacuum bagged over H-80 Divinycell crosslinked foam and AL-600 Baltek cores above the waterline,and H-80 and Airex foam below. There are high concentrations of unidirectional 'S-glass (in lieu of carbon fiber, along the hull backbone and bilge stringers. An intergrated gridwork of deep keel floors, partial bulkheads, longitudinals, and ring frames supports rig and keel loads, controls headstay tension, and prevents shell distortion.

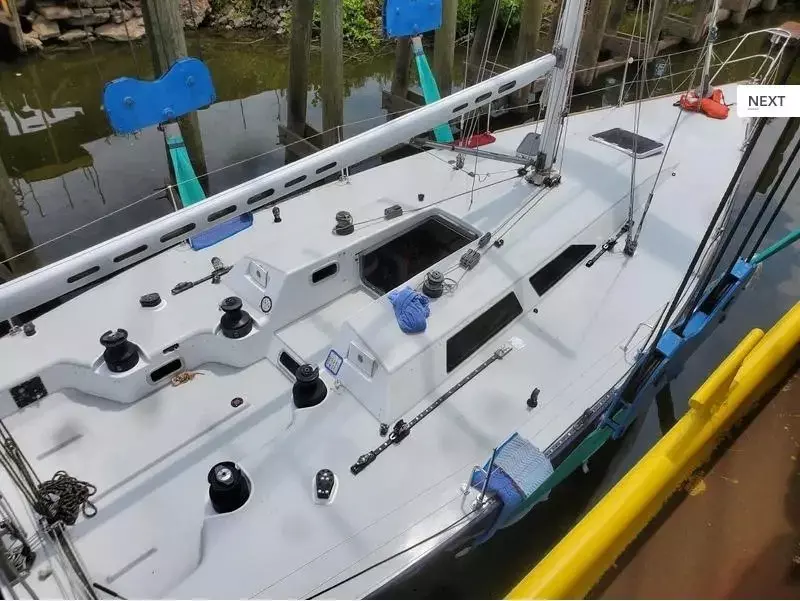

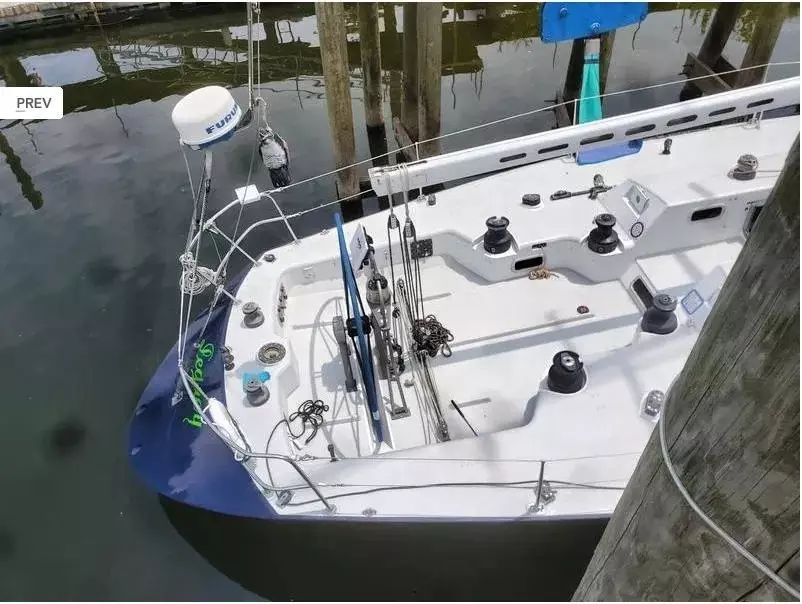

The deck is a similar laminate of 'S-Glass' skins over the same H-80 Divinicell and AL-600 cores used in the hull. Unidirectional 'S-Glass' Reinforces deck stringers, which take the heavy compression loads from the headstay and backstay, and which are continuous from stem to stern. All laminates are vaccum bagged and post cured, and epoxy resins are used throughout.

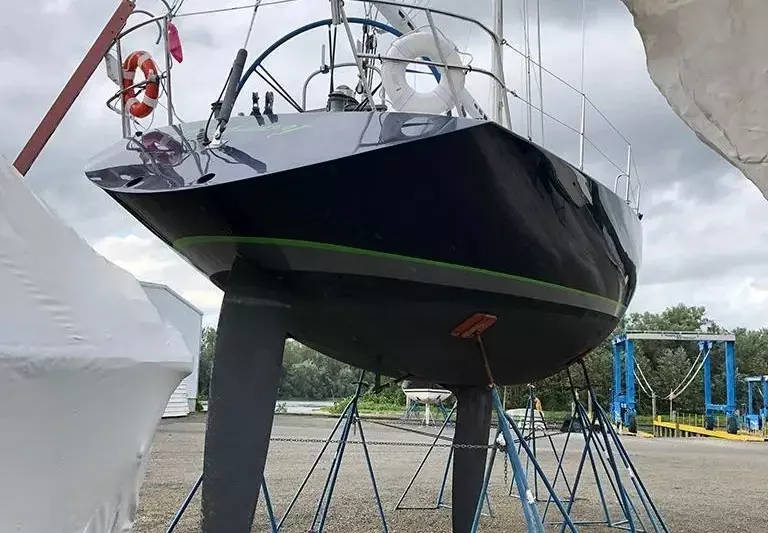

Both T-42's Boast a ballast/displacement ratio of over 60%, and nearly half the ballast weight is carried inside the hull. Most of this inside ballast is carefully shaped to fit the hull and very heavily glassed in place, forming a 'lead core' beam supporting the mast step, and massive lead and glass 'backing plates' distributing the keel bolt and grounding loads over a large area of hull shell. This ballasting approach results not only in a remarkably robust structure, but also in a substantial speed advantage upwind, due to an unusually 'soft' motion in a seaway resulting from the low pitch moment of inertia. Also contributing to the high stability and low pitch moment are a very sophisticated four spreader Hallspar rigs.

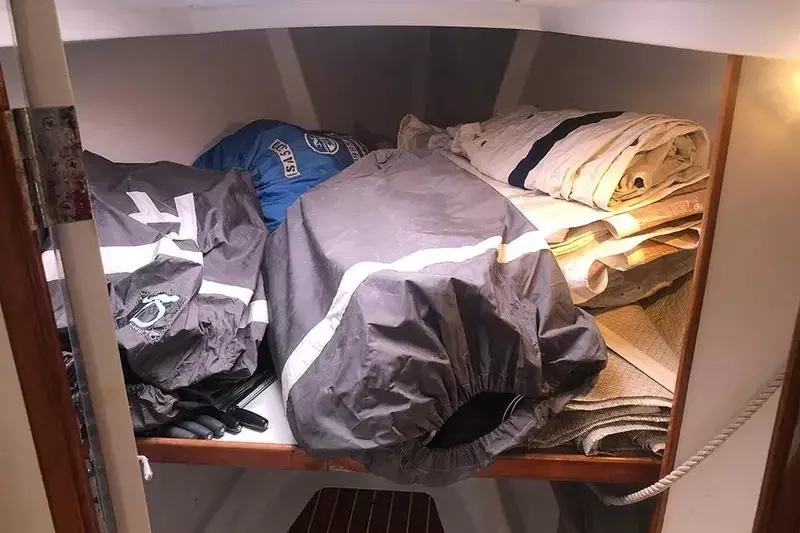

Confirmation of Sail inventory will be at the survey.
